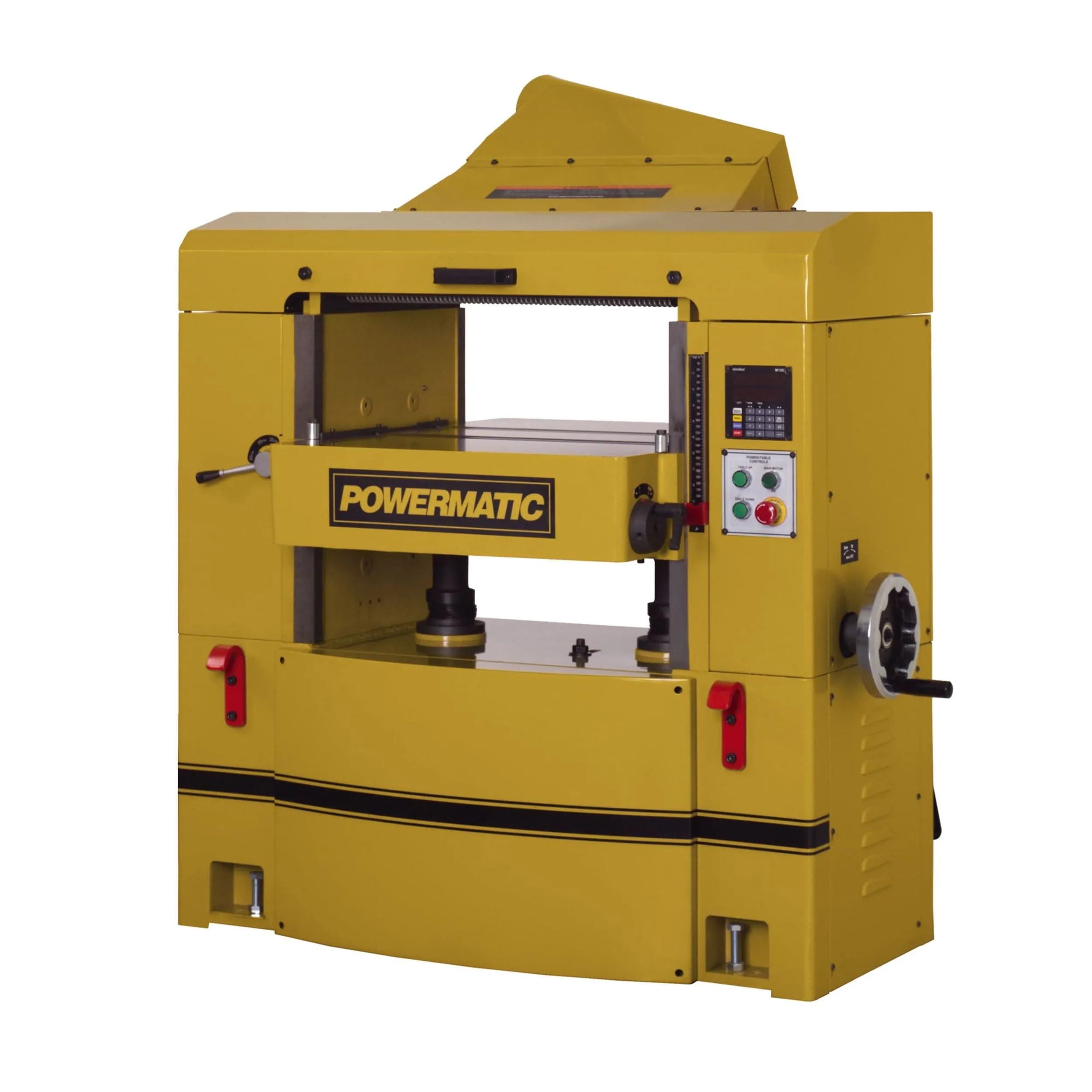

Product Details
＋
- Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
- Digital readout and simple PC controller make quick and easy table height set ups
- Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
- Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
- 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
- Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
- Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
- 3 speed feed selector allows you to quickly change feed rates
- Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
- Dust hood features built-in 5" dust chute for efficient dust collection
- Helical head with four sided inserts
- Dust hood with 5" diameter dust port
- Segmented infeed rollers
- Segmented chip breakers
- Tool kit with pneumatic screwdriver for removing the cutterhead insert blades
- Bed Rollers Adjustable from Front : 0" to 0.05"
- Column Diameter (in) : 2-1/2
- Cuts Per Minute : 30000
- Cutterhead Diameter (in) : 3-3/8
- Cutterhead Speed (RPM) : 5000
- Dust Collection Minimum CFM Required : 600
- Dust Port Diameter (OD/in) : 5
- Feed Rate (FPM) : 30-25-20
- Height (in): 59
- Length (in): 52
- Maximum Depth of Cut (in) : 1/4
- Maximum Full Width Depth of Cut (in) : 1/8
- Maximum Height of Rollers Parallel to Tabletop (in) : 0.05"
- Maximum Planing Thickness (in) : 9
- Maximum Planing Width (in) : 25
- Minimum Planing Length (in) : 10
- Model Number : WP2510
- Motor HP : 15HP
- Motor Phase : 3Ph
- Motor Voltage : 230/460V
- Net Weight (lb): 1,725
- Number of Knives : 168 Four-sided inserts
- Outfeed Roller Diameter (in) : 3
- Overall Dimensions : 52 x 36 x 59
- Part Number : 1791303
- Prewired : Prewired 230V
- Readout Scale : in/mm
- Rollers (in) : (1) infeed, (2) outfeed
- Rotation (Forward/Reverse) : Fwd only
- Segmented Infeed Roller Diameter (in) : 3
- Table Height Adjust Manual : 1 handwheel revolution = 1/32"
- Table Size (in) : 32-3/16 x 26
- Table Support : 2 column
- Tool Supplied : tool kit
- Width (in): 36
- Shipping weight 1,850 lb.
