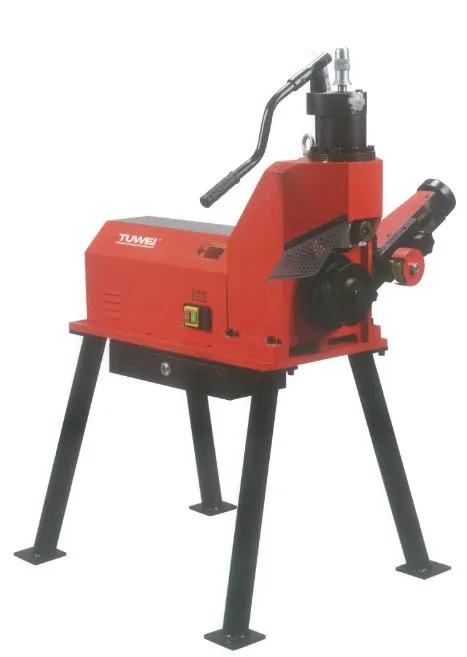

• The TWG-IVA is specifically designed for grooving 8" - 24" steel pipes for the connection of heavy duty couplings and grooved pipes
• Equipped with new hydraulic pump and stroke limitation devices to enhance the effectiveness and depth precision of the grooves created.

• By combining the high-performance gear reducing motor and guide wheel unit, the machine will create high quality grooves with increased working efficiency
• In order to increase the operational convenience and reduce labour, the TWG-IVA comes with a foldable hydraulic steel pipe stand.

Specifications :

• Capacity : 8" - 24" (219mm - 630mm diameter) SCH40 Steel pipes
• Max. wall thickness : 13mm
• Output rotational speed : 15 rpm
• Gross Weight : 340 kg
• Dimensions (L x W x H) : 102 x 75 x 147 cm
